Tzora APT family Catalog

APT 5+ – Active Passive Trainer Upgraded

An exercise machine specifically designed to assist in the rehabilitation and mobility enhancement of individuals facing mobility impairments. It provides a versatile workout, allowing for both passive and active training modes. Using isokinetic physiotherapy methods, we managed to bring the best result to countless customers. The APT can be adjusted to cater to various intensity levels, making it suitable for users at different stages of rehabilitation. Using the APT, is crucial for patients recovering from injuries or with chronic conditions affecting their mobility.Differences Between APT 1/5 and APT – 1/5+We have redesigned the APT to make it even more accessible to a wider range of clients. In addition to a new and sharper look, the new AP + is better sized to fit young children.Differences Between APT 1/1+ and APT 5/5+The differences between the APT models can be clearly seen in the control panel of each device. While the functionality and performance of the devices are the same, the APT 5/5+ offers more options for displaying training session information and has more power/resistance levels for customizing your physiotherapy routine.

Please select the desired model:

Single

Double

ICU

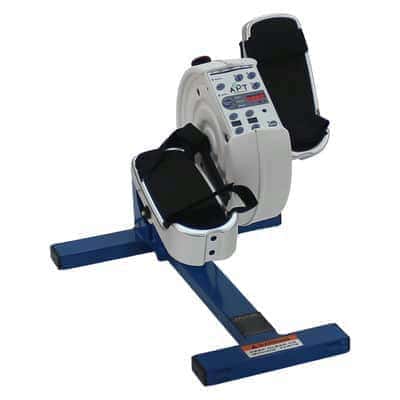

Single APT Device

1

About Single APT

2

Single APT Use

The A.P.T Family: Designed to Assist with a Wide Range of Conditions

Our devices are crafted to support patients with various medical conditions, including:

  • Spinal cord injuries
  • Head injuries
  • Partial to complete neurological impairments
  • Geriatric issues
  • Stroke (CVA)
  • Cardiac and pulmonary issues
  • Cerebral Palsy (CP)
  • Muscular Dystrophy (MD)
  • Spinal Muscular Atrophy (SMA)
  • Reducing the risk of Osteoporosis
  • Hemodialysis (during treatment)
  • General rehabilitation needs

Health Improvements and Benefits

Many users with different levels of disability train daily at home with the A.P.T device, experiencing significant health improvements and enjoyment from their exercises.

Benefits Include:

  • Enhanced joint function and mobility
  • Reduced muscle stiffness (spasticity)
  • Preservation of muscle mass
  • Improved muscle tone
  • Maintenance of muscle strength
  • Better cardiovascular and pulmonary function
  • Increased range of motion
  • Prevention of tendon shortening
  • Improved flexibility
  • Prevention of bone demineralization
  • Better blood circulation

Exercise Options

The A.P.T device offers a variety of exercise options and modes to meet different patient needs:

  • ACTIVE Mode: Provides varying degrees of resistance.
  • PASSIVE Mode: Features adjustable speed and torque levels.
  • Combination Mode: Combines both passive and active training.
3

More Info

Technical InformationMeasurement
Weight22 lbs. / 10 kg
Folded Dimensions18x28x6 in / 46x72x15 cm
Rotation Radius1.5 / 3 / 4.5 in / 3.75 / 7.5 / 11.25 cm
Rated Voltage24V DC
Power Supply100-240V AC 50-60Hz
Rated Power100W

The APT-5 is a versatile digital trainer with adjustable speed, resistance, rotations, and load levels, suitable for various users.

Key Features:

  • Portability: Use on the floor, tabletop, or with the Hi-Lo frame.
  • Digital Control: Precise adjustments for personalized workouts.

Benefits:

  • For Passive Users:
    • Circulation & Muscle Tone: Enhances blood flow and muscle tone.
    • Decreases Atrophy: Reduces muscle atrophy and swelling.
    • Motoric Learning: Supports motor development.
  • For Active Users:
    • Resistance Levels: Five levels for customized intensity.
    • Comprehensive Training: Works for upper and lower limbs.
    • Adjustable Crank-Arms: Customizable for comfort.
    • Mobility Improvement: Boosts strength, endurance, and rhythmic movement.

Ideal For:

  • Passive Users: Spinal cord injuries, spina bifida, CVA, cerebral palsy, myopathies, congenital muscular dystrophy.
  • Active Users: Stroke recovery, orthopedic conditions, motor disorders in children, brain injury recovery, Parkinson’s, multiple sclerosis, post-polio syndrome, cardiac rehab.

The APT-5 provides flexible and effective solutions for both active and passive rehabilitation.

Tele APT App:

The Tele APT app by Tzora enhances the APT-5 with:

  • Customized Exercise Programs: Tailored routines to fit individual needs.
  • Progress Tracking: Monitor your progress via smartphone or tablet.
  • Real-Time Feedback: Adjust settings and receive immediate feedback through an intuitive interface.
  • Personalized Rehabilitation: Supports customized fitness and rehabilitation routines.
  • Remote Monitoring: Enables healthcare providers to track progress conveniently.

Click here for more information

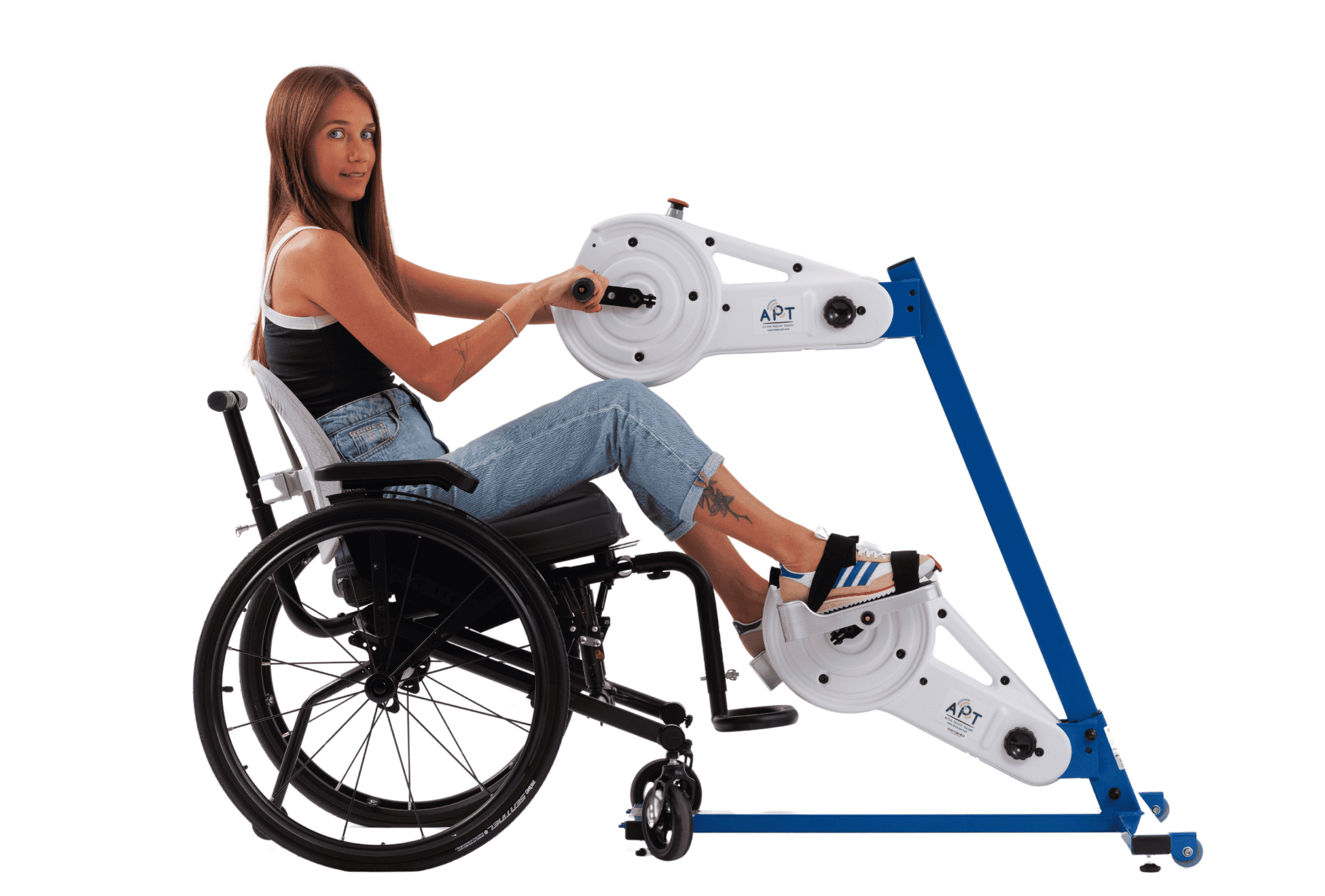

Double APT Device

1

About Double APT

2

Double APT Use

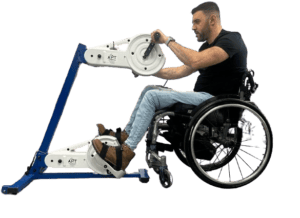

The Double APT can function as a single unit or as two separate devices. The units can operate in sync with each other or independently, with each unit adjustable for different resistance, speed, and torque. This configuration offers a wide range of exercise options.

3

More Info

LengthWidthHeightWeight
93 cm69 cm100-123 cm32 kg

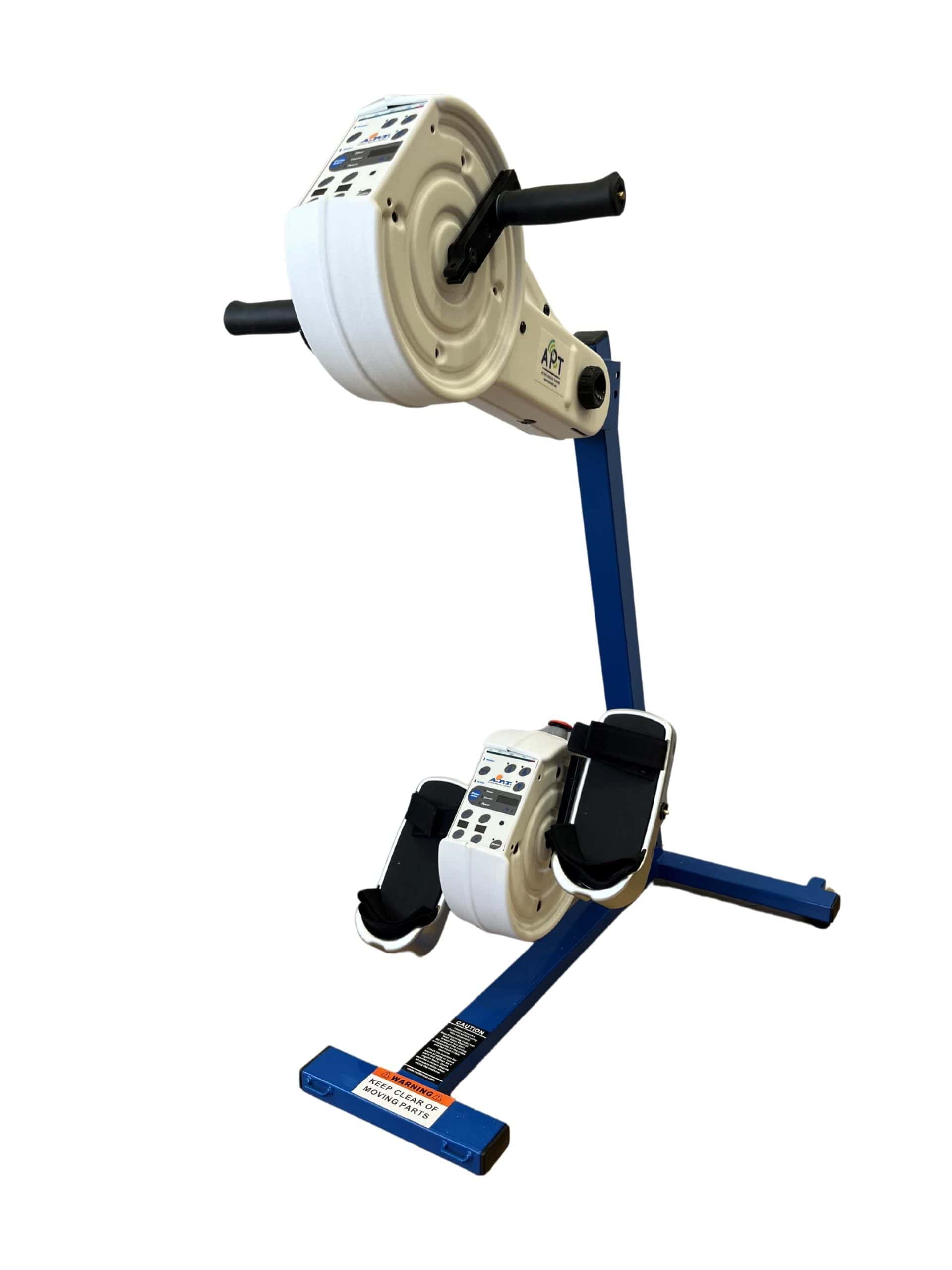

The Double APT is a device equipped with two APT units, designed to maximize the efficiency of physiotherapy exercises. These two units allow patients to work on both upper and lower limbs simultaneously.

ICU Device

1

About ICU

2

ICU Use

Versatile Applications: The ICU Bed Stand serves as a multipurpose exercise machine, effectively supporting both upper and lower limb training. It accommodates both active and passive exercise modes, offering adjustable settings to cater to each user’s unique needs.

Comprehensive Use: Equipped with adaptable accessories, this stand supports a broad range of physical abilities. Its flexible design makes it an essential tool for various therapy and exercise routines, ensuring effective rehabilitation for diverse conditions.

Ideal for Home and Hospital Care: Designed for reliability and flexibility, the ICU Bed Stand is perfect for use in both home and hospital environments. It facilitates a personalized approach to patient therapy and rehabilitation, enhancing daily therapy effectiveness and accommodating individual requirements.

3

More Info

DimensionMeasurement
Length80 cm
Width126 cm
Height130 cm
Weight40 kg

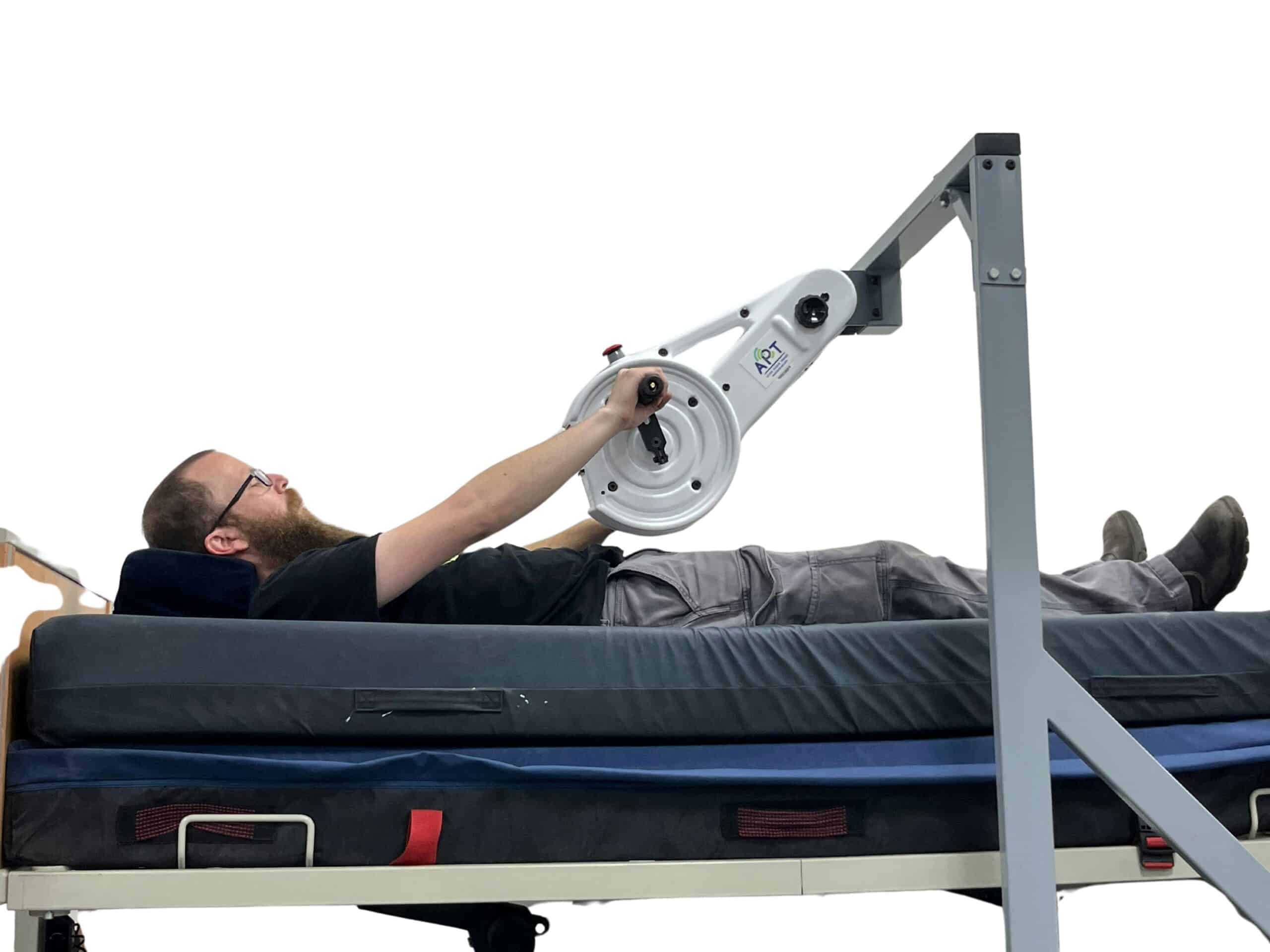

ICU Bed Stand: Versatile and Adjustable Therapy Support

The ICU Bed Stand is engineered with a durable steel frame to enhance the functionality and adjustability of the APT (Assisted Physical Therapy) for bed-bound patients. Its innovative design addresses the challenges of limited mobility, providing effective daily therapy both at home and in a hospital setting.

  • Sturdy and Stable Design: The ICU Bed Stand does not require mechanical attachment to the bed or chair, ensuring stability. It features secure wheels with a foot pedal anchoring system to keep it firmly in place.
  • Adjustable Therapy Angle: The stand allows for precise adjustment of the APT’s angle, catering to individual needs and enhancing the effectiveness of physical therapy.
